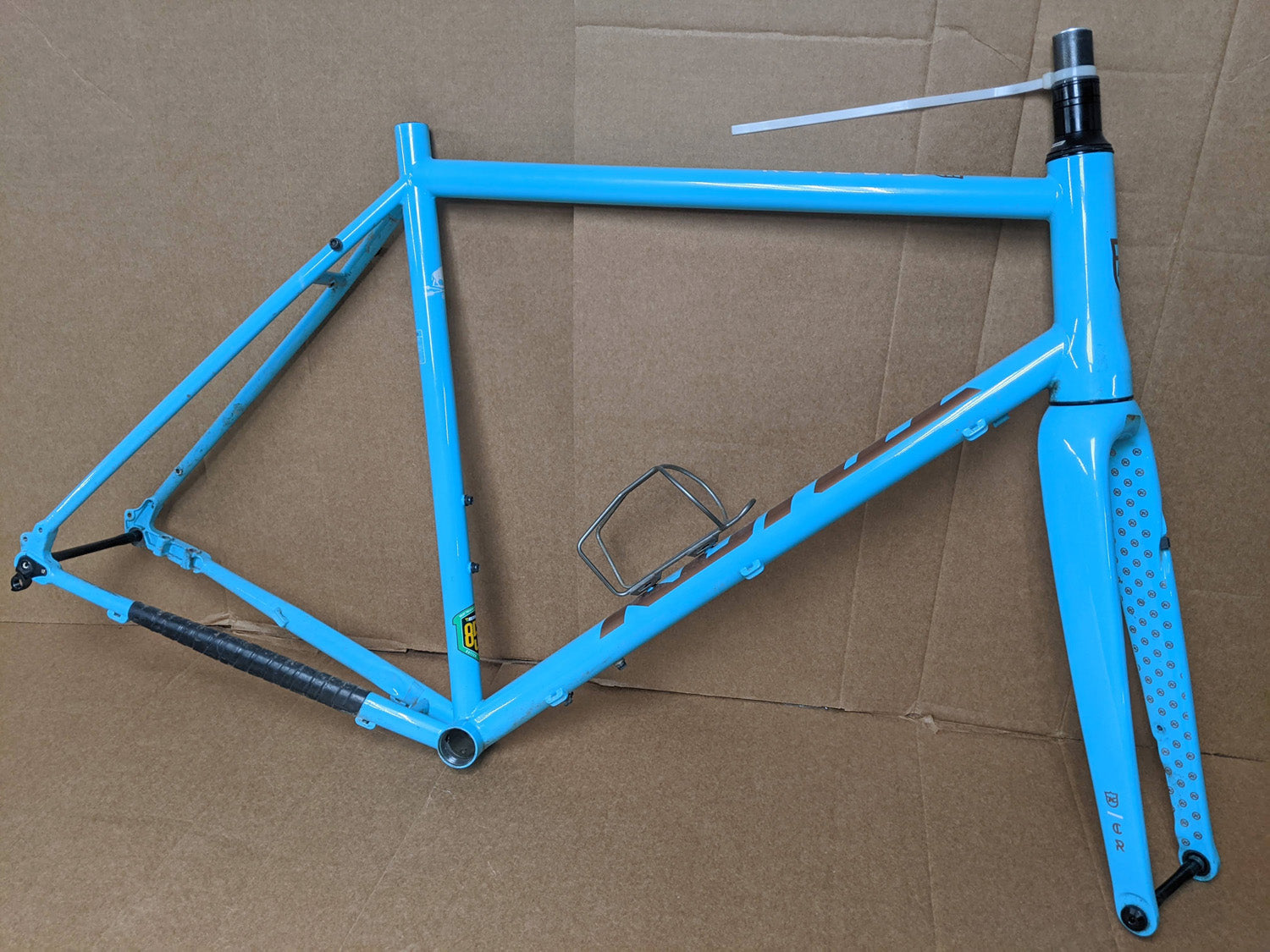

Note: Used Frame.
The Rove LTD is the pinnacle of our expanded Rove lineup. Top-notch Reynolds 853 tubing, clearance for high volume 650b tires, and our new full carbon thru-axle fork set the stage for a no-holds-barred build that verges on custom. Whether you’ve got long distance gravel events in your sights, or just enjoy the feel of steel and big tires, this is one bike that won’t leave you wanting more.

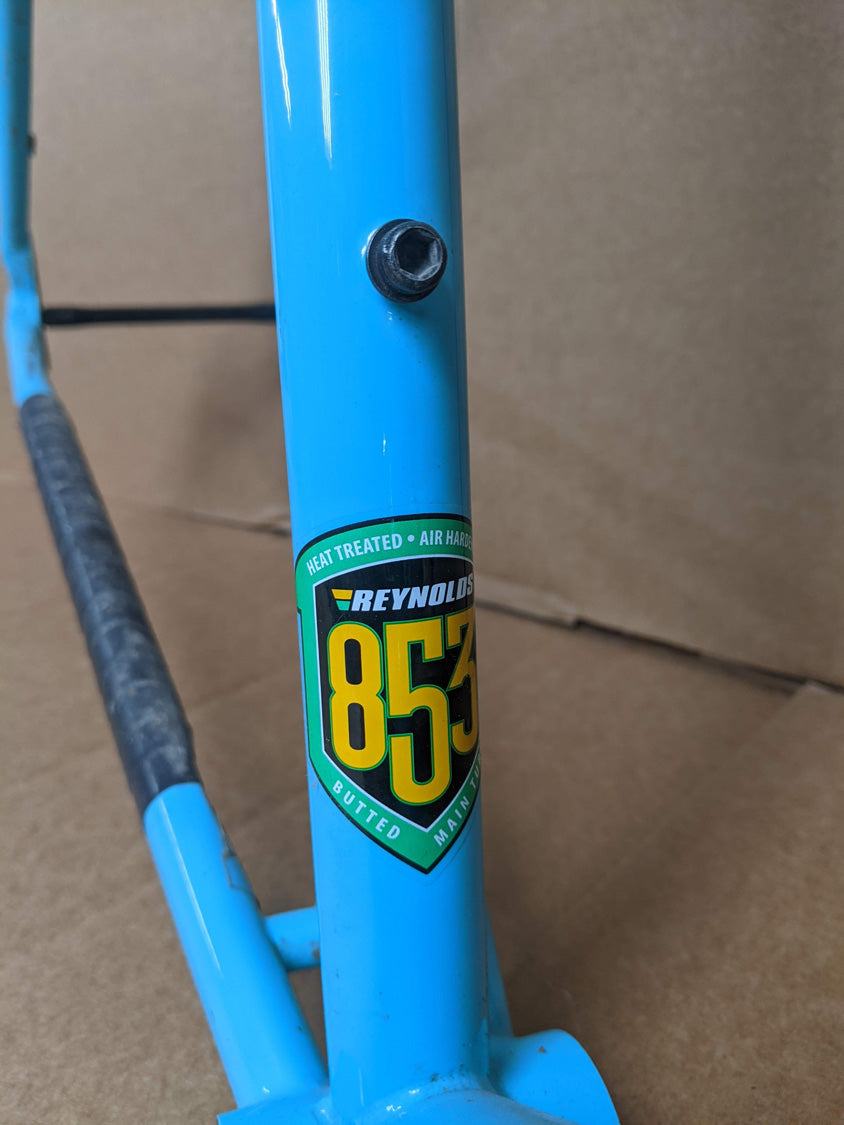

- Frame Material: Reynolds 853 Butted Cromoly

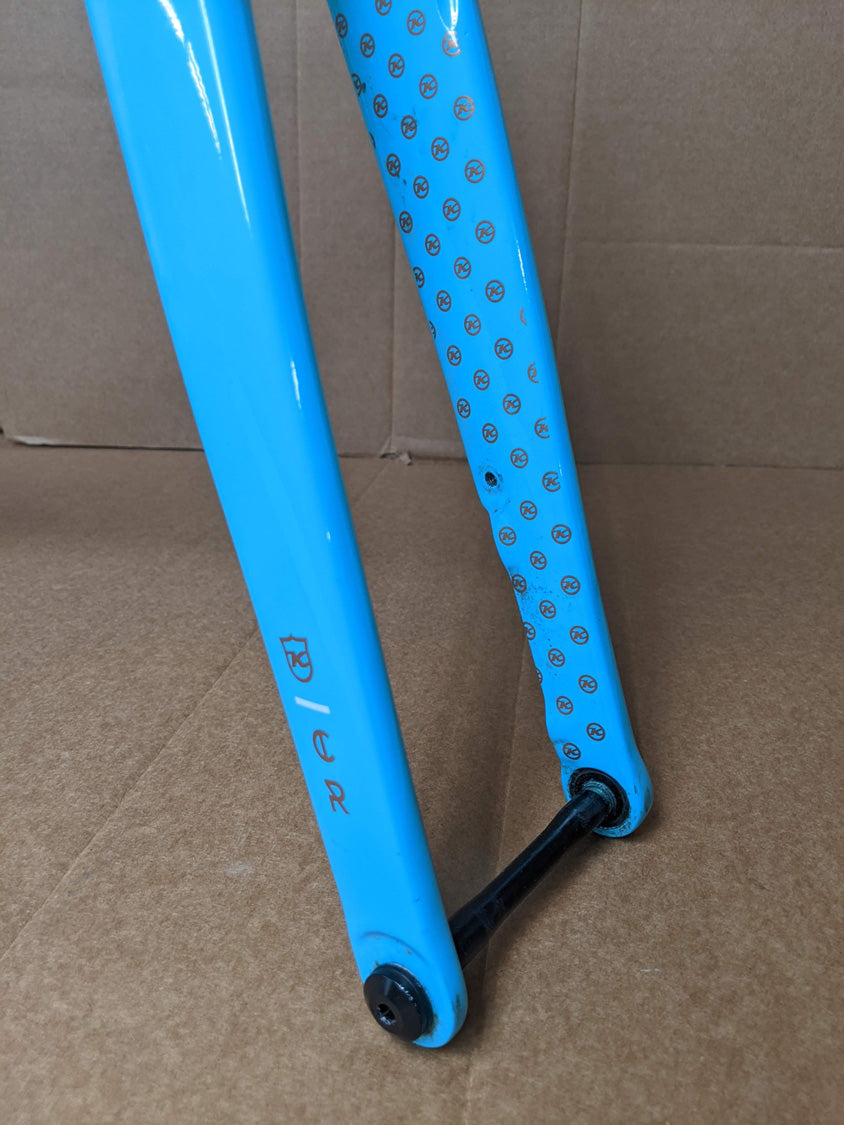

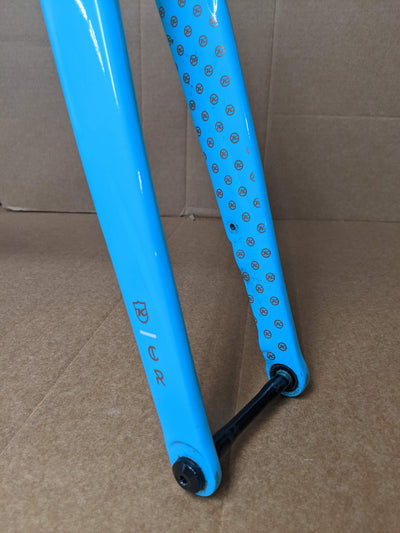

- Fork: Kona Full Carbon Flat Mount CX Race Disc 100x12mm
GEOMETRY (mm)
| SIZE | 48 | 50 | 52 | 54 | 56 | 58 |
| ST LENGTH | 480 | 500 | 520 | 540 | 560 | 580 |
| TT LENGTH | 515 | 531 | 546 | 563 | 579 | 599 |
| REACH | 373 | 378 | 383 | 388 | 392 | 400 |
| STACK | 530 | 550 | 570 | 590 | 610 | 630 |
| STANDOVER | 740 | 760 | 780 | 800 | 820 | 840 |
| HT ANGLE | 70.5 | 70.5 | 71.0 | 71.0 | 71.5 | 71.5 |
| HT LENGTH | 102 | 123.2 | 144.5 | 165.6 | 187.6 | 207.9 |
| ST ANGLE | 75.0 | 74.5 | 74.0 | 73.5 | 73.0 | 72.5 |
| CS LENGTH | 435 | 435 | 435 | 435 | 435 | 435 |
| BB DROP | 74 | 74 | 72 | 72 | 70 | 70 |
| BB HEIGHT | 269 | 269 | 271 | 271 | 273 | 273 |
| WHEELBASE | 1011 | 1023 | 1031 | 1043 | 1050 | 1064 |
| FRONT CENTER | 587 | 599 | 606 | 618 | 624 | 639 |
| FORK LENGTH | 395 | 395 | 395 | 395 | 395 | 395 |
| FORK OFFSET | 45 | 45 | 45 | 45 | 45 | 45 |
